Tune Download and Preload Options

Modified on Mon, 19 Sep, 2022 at 11:27 AM

Note: The below is an example.  Every application is different.  An option available on one vehicle may not be available on a different application. Some adjustable options are only available through Vehicle functions once the vehicle has been tuned. The example below is of a BDX tuner, but in general, our devices follow the same or similar path.

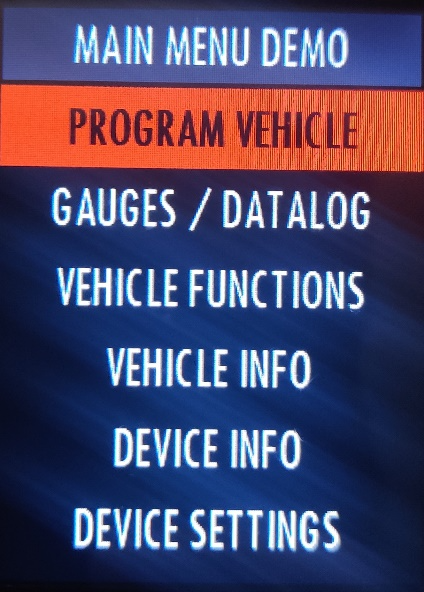

  1. First, you will need to plug the device into the vehicle you are installing on. Once the device is plugged in and powered on select Program Vehicle.

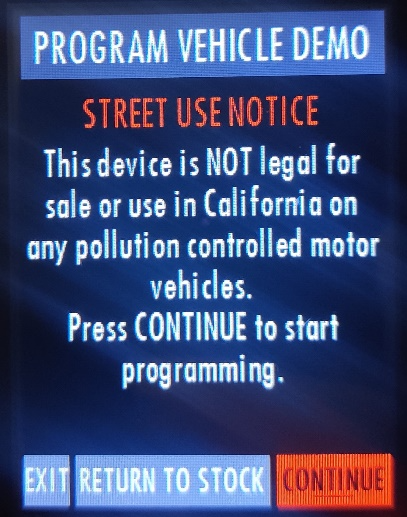

        2. Continue through the STREET USE NOTICE

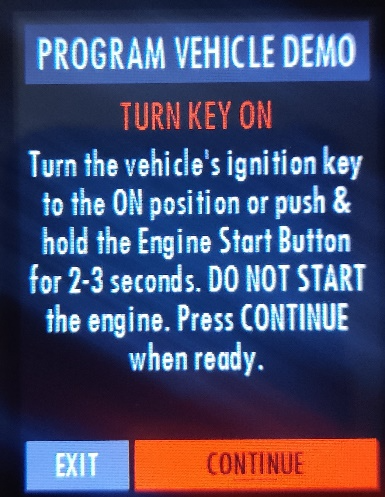

        3. Turn the key to run

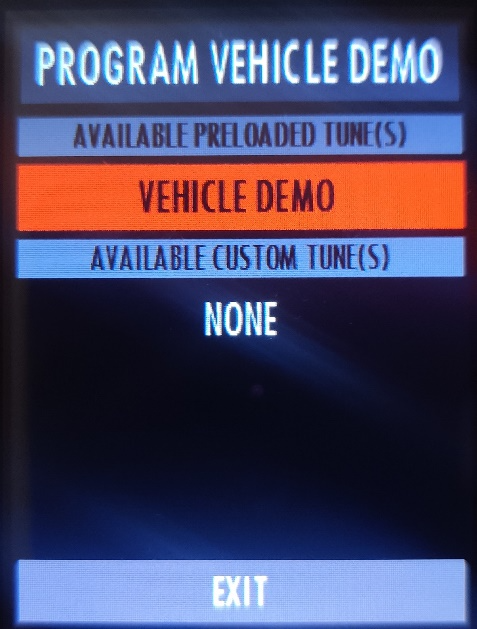

        5. Select your vehicle under AVAILABLE PRELOADED TUNES (Your device should show your vehicle here rather than DEMO)

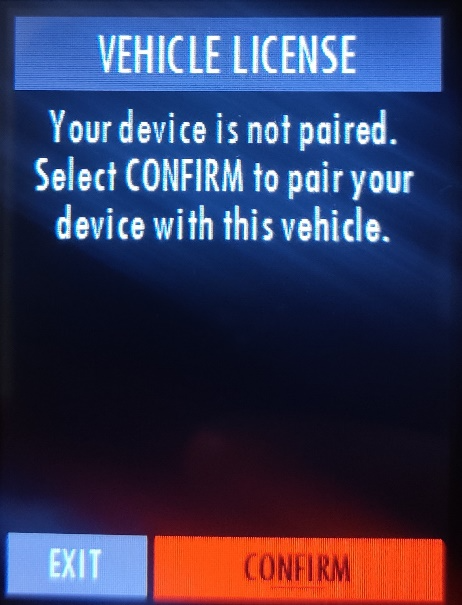

        6. Confirm your vehicle

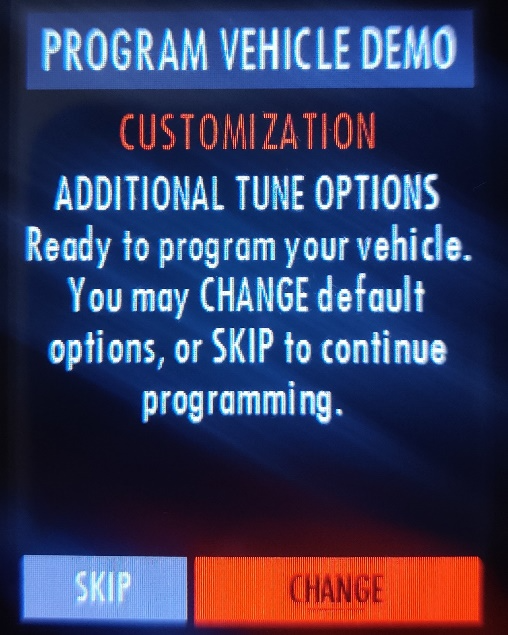

        7. Select CHANGE

        8. Select CHANGE again

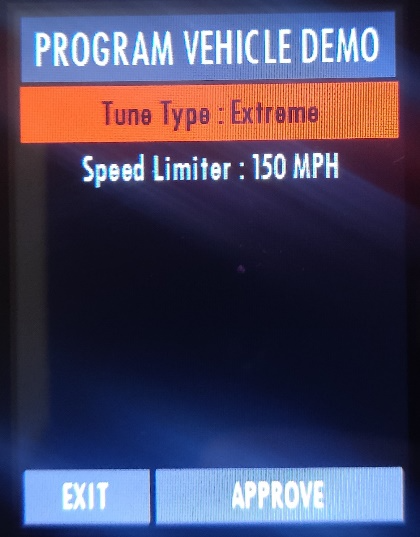

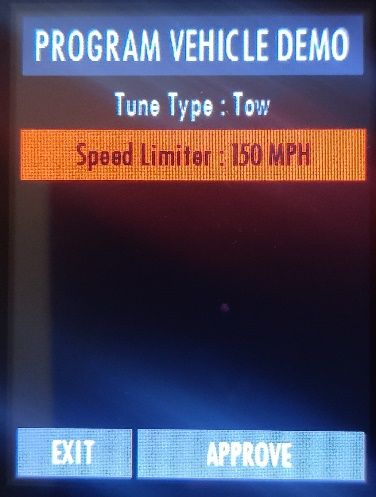

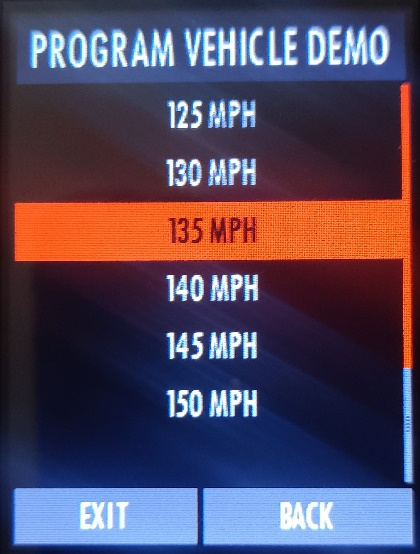

        9Highlight and select each option you’d like to adjust.  Click here for a list of potential options you might find.

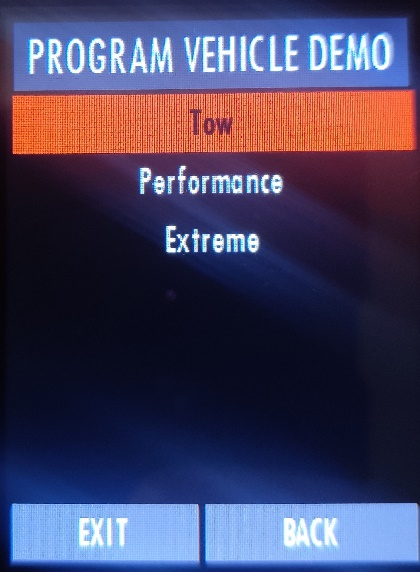

  • Select the option you’d like to apply for each setting
  • Select BACK if you don’t want to make an adjustment
  • EXIT will abort the tuning process and bring up the Main Menu again

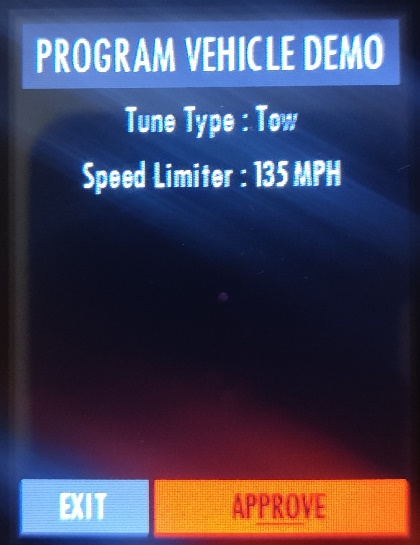

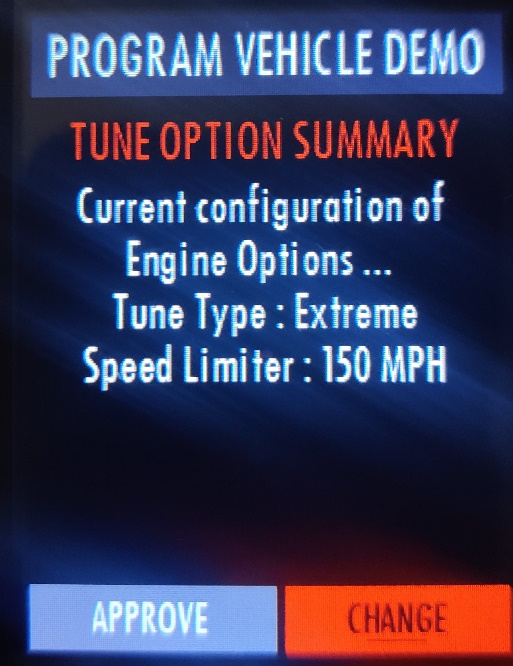

        10. Press the right button on the BDX to highlight APPROVE

        11. Select CONTINUE at the Tune Summary screen


        12. Turn Key Off

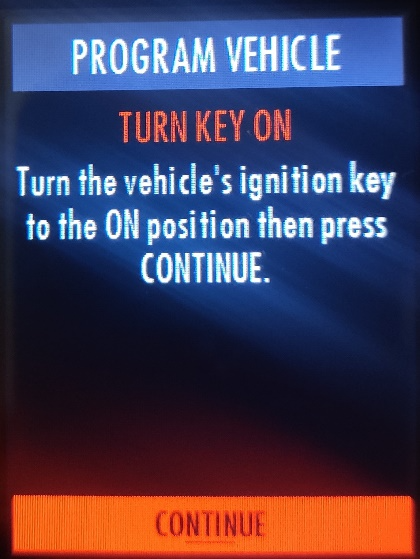

        13. Turn the key on

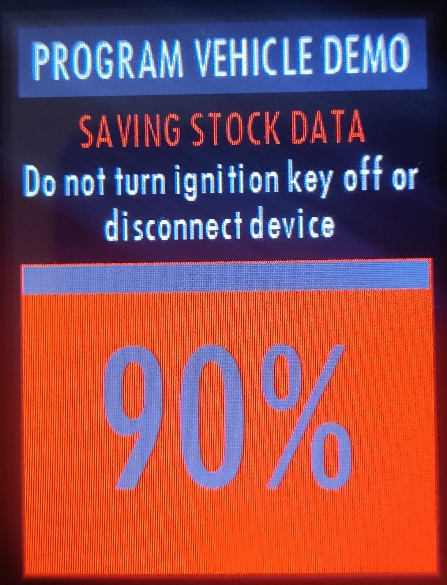

        14. BDX will save stock

        15. Turn the key off

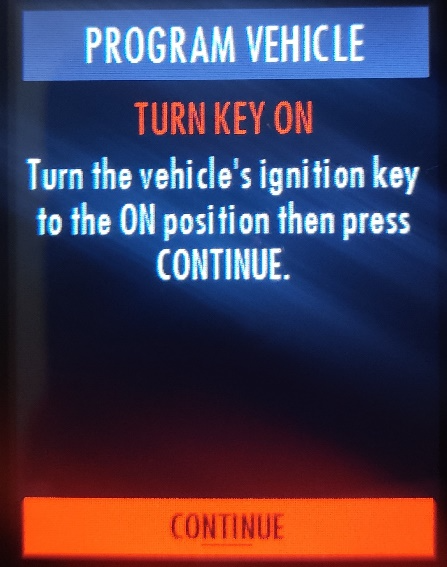

        16. Turn the key on

        17. BDX will apply the tune
